Taw qhia

Yog tias koj tshawb xyuas cov xaum xaum xaum xaum tom qab lub sijhawm ua haujlwm, cov yeeb nkab ncaj yuav tseem saib tau thaum ob peb lub luj tshib twb dhau los ua thinner.

Qhov no yog qhov ntau.

Xuab zeb thiab slurry tsis txav mus los ntawm txhua qhov ntawm cov kav dej hauv tib txoj kev. Nyob rau hauv ib tug ncaj seem, cov ntws muaj ib tug kuj ruaj khov kev taw qhia. Ntawm lub luj tshib, lub slurry yuav tsum tig, tab sis cov khoom uas tsis tas yuav hloov cov kev taw qhia sai li dej.

Qhov tshwm sim yog rov sib cuag nrog cov yeeb nkab phab ntsa.

Vim li no,UHMWPE xuab zeb tawm yeeb nkabfeem ntau suav hais tias ua ke nrog UHMWPE lub luj tshib thiab lwm yam hnav- tiv taus fittings es tsis kho cov yeeb nkab ncaj nraim yog tib qho khoom tseem ceeb.

Vim Li Cas Lub Luj Tshib Hnav nrawm dua?

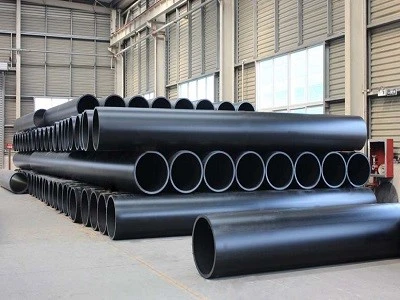

info-400-300

图 1

Qhov laj thawj tseem ceeb yog qhov kev hloov pauv ntawm cov dej ntws.

Xav txog cov xuab zeb- dej sib tov txav los ntawm cov kav dej ncaj nraim. Feem ntau cov particles taug kev raws cov kev taw qhia dav dav ntawm qhov ntws. Thaum lawv ncav cuag lub luj tshib, cov dej tig ib ncig ntawm qhov khoov.

Cov khoom hnyav dua muaj ntau dua inertia.

Qee qhov txav mus rau sab nraud ntawm qhov khoov ua ntej ua raws cov kev taw qhia tshiab ntws. Lawv tuaj yeem tsoo phab ntsa, swb raws nws thiab txuas mus rau hauv qab.

Qhov no tshwm sim ntau zaus thaum lub sijhawm ua haujlwm.

Nrog rau cov kav dej huv huv, cov nyhuv no yuav tsis yog qhov tseem ceeb. Nrog abrasive xuab zeb slurry khiav tsis tu ncua, nws tuaj yeem dhau los ua ib qho tseem ceeb ntawm kev hnav hauv zos.

Particle loj ua qhov sib txawv

Tsis yog txhua qhov xuab zeb tawm system muaj tib yam hnav qauv.

Cov xuab zeb zoo coj txawv ntawm cov xuab zeb coarse. Yog tias muaj pob zeb lossis cov pob zeb loj dua, lub luj tshib yuav muaj kev cuam tshuam zoo dua ntxiv rau kev zawv zawg.

Particle hardness tseem ceeb thiab.

Lub raj xa dej uas nqa cov pob zeb me me tsis raug rau cov xwm txheej zoo ib yam li ib qho uas nqa cov ntxhia nyuaj.

Qhov no yog vim li cas kev nug cov yeeb nkab uas muaj txiaj ntsig yuav tsum suav nrog qhov kwv yees qhov loj me thiab cov khoom thauj.

Solids Concentration tsis tuaj yeem tsis quav ntsej

Tus nqi ntawm cov khoom siv hauv slurry kuj tseem cuam tshuam rau kev hnav sab hauv.

Ib qho qis- cov khoom sib tov yuav muaj qee qhov me me uas dhau los ntawm ib feem ntawm cov yeeb nkab.

Ua kom cov khib nyiab ntau ntxiv, thiab muaj ntau cov khoom txav los ntawm tib lub yeeb nkab nyob rau tib lub sijhawm.

Qhov sib txawv tuaj yeem ua qhov tseem ceeb thaum lub sijhawm ua haujlwm tas mus li.

Rau cov xuab zeb tso pipeline,nruab nrab + concentration + particle loj + ntws tshaj tawmmuab cov duab zoo dua ntawm kev hnav khaub ncaws ntau dua li lo lus "xuab zeb" ib leeg.

Qhov twg UHMWPE tuaj rau hauv daim duab?

Qhov zoo ntawm UHMWPE feem ntau yog nyob rau sab hauv.

UHMWPE muaj kev puas tsuaj siab thiab zoo toughness. Qhov no ua rau nws tsim nyog rau cov ntawv thov uas cov khoom sib txuas txuas mus rau cov yeeb nkab phab ntsa.

Nws lub ntsej muag du yog qhov tseem ceeb rau kev thauj mus los slurry.

Es tsis txhob cia siab rau lub zog ntawm cov qauv, UHMWPE muab cov khoom siv tshwj xeeb uas haum rau kev pabcuam abrasive.

Qhov no yog tshwj xeeb tshaj yog muaj feem xyuam rau qhov chaw uas hnav yog concentrated.

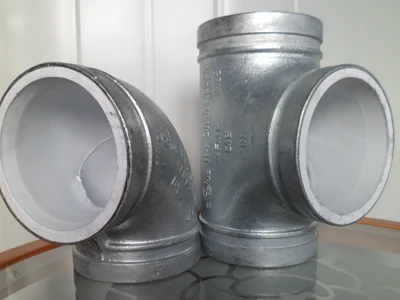

info-400-300

图 2

Yuav ua li cas txog UHMWPE Luj Tshib?

Ib qho hnav- cov yeeb nkab ncaj ncaj tsis daws tau ntau yog tias lub luj tshib tseem yog qhov tsis muaj zog.

Rau lub raj xa dej uas muaj ntau qhov kev hloov pauv hauv kev coj ua, lub luj tshib yuav tsum tau txiav txim siab thaum lub sijhawm pib qhov tshwj xeeb.

Lub luj tshib yuav tsum tau nyob ntawm:

Txoj kab uas hla

Ua hauj lwm siab

Particle loj

Khoom concentration

Flow ceev

Khoov lub kaum sab xis thiab cov kav dej layout

Rau qhov kev pabcuam abrasive hnyav, qhov kev qhia haum haum yuav tsim nyog tau txais kev saib xyuas ntau npaum li cov yeeb nkab ncaj.

UHMWPE Sand Discharge Pipe Parameters

Parameter	Hom Specification
Khoom siv	UHMWPE
Nominal Dia	DN50-DN1200
Txheem Length	9 m / 12 m
Kev ntsuas siab	PN1.0–PN10
Ua haujlwm kub	Kwv yees li . -269℃rau +80 degree
Nruab nrab	Xuab zeb, sediment, abrasive slurry
Daim ntawv thov	Xuab zeb tawm, dredging, slurry thauj

Qhov kawg specification yuav tsum tau lees paub raws li qhov tseeb siab, ntws tej yam kev mob, particle yam ntxwv thiab pipeline configuration.

Thaum twg koj yuav tsum saib dhau ntawm cov yeeb nkab ncaj?

Muaj ntau lub cim ceeb toom.

Yog tias tib lub luj tshib raug hloov ntau zaus dua li cov ntu ncaj, qhov kev hnav hauv zos twb cuam tshuam rau lub cev.

Yog tias cov slurry concentration tau nce, qhov kev xaiv cov yeeb nkab qub yuav tsis cuam tshuam txog kev ua haujlwm tam sim no.

Yog tias tus nqi ntws tau hloov pauv, qhov kev hloov pauv ntawm qhov nrawm kuj tuaj yeem cuam tshuam rau kev hnav.

Thiab yog tias cov kav dej tau txuas ntxiv lawm, lub luj tshib lossis cov khoom txo qis tuaj yeem qhia qhov siab tshiab -cov chaw hnav.

Hauv cov xwm txheej no, hloov cov khoom siv yeeb nkab ncaj xwb yuav tsis daws qhov teeb meem tag nrho.

UHMWPE Yeeb Nkab lossis UHMWPE-Led Steel?

Cov no yog cov yeeb nkab sib txawv.

Ib qho khoom UHMWPE yeeb nkab siv UHMWPE ua cov yeeb nkab lub cev. Nws muaj qhov hnyav, tsis muaj zog thiab corrosion kuj.

UHMWPE-kab steel yeeb nkab sib txuas cov txheej txheem steel nrog UHMWPE hauv ob sab phlu. Qhov no tuaj yeem txiav txim siab thaum lub kaw lus muaj cov txheej txheem tshwj xeeb lossis cov kev xav tau siab.

Qhov kev xaiv nyob ntawm DN, siab, kev teeb tsa thiab cov kev xav tau ntawm cov kav dej.
